Multiple Power Options
Multiple power levels across the ELYX lineup support different robot sizes, battery systems, and charging requirements.
ELYX Series
Extend robot automation
to charging
Contactless wireless charging solutions from 150 W to 2.4 kW,
designed for the diverse battery and charging requirements of robots.

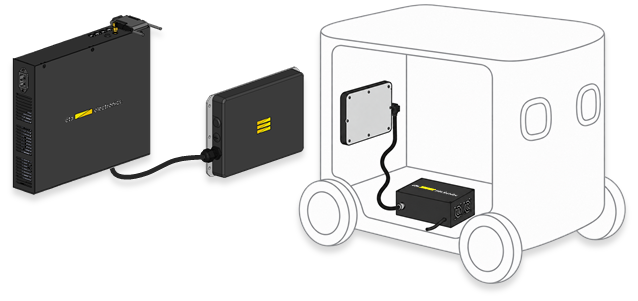

Built for Real-World Robot Charging
ELYX automates the charging process, helps reduce charging-related interruptions,
and supports flexible integration across different robot and charging environments
Wide Positioning Tolerance
Low-Profile Coil Design
Built-in Protection
Connected Charging
Flexible Integration
APPLICATIONS
Explore where ELYX can be applied

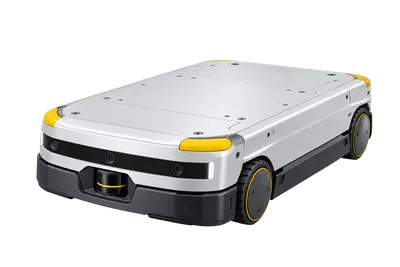

AMR / AGV
Material handling and logistics

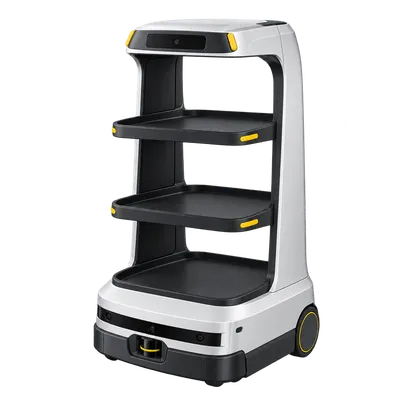

Service Robot
Retail, hospitality and facility management

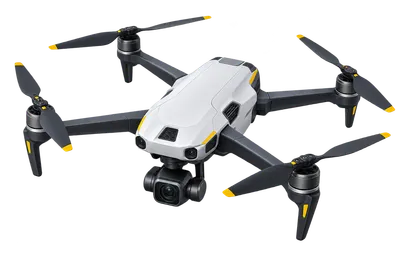

Drone / UAV
Inspection, delivery and surveillance

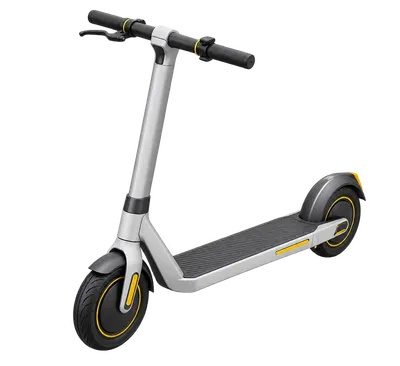

Light Electric Mobility
Personal and shared mobility
Other
Custom applications and new use cases
ELYX in the Field
Examples of how ELYX is used in real-world charging environments

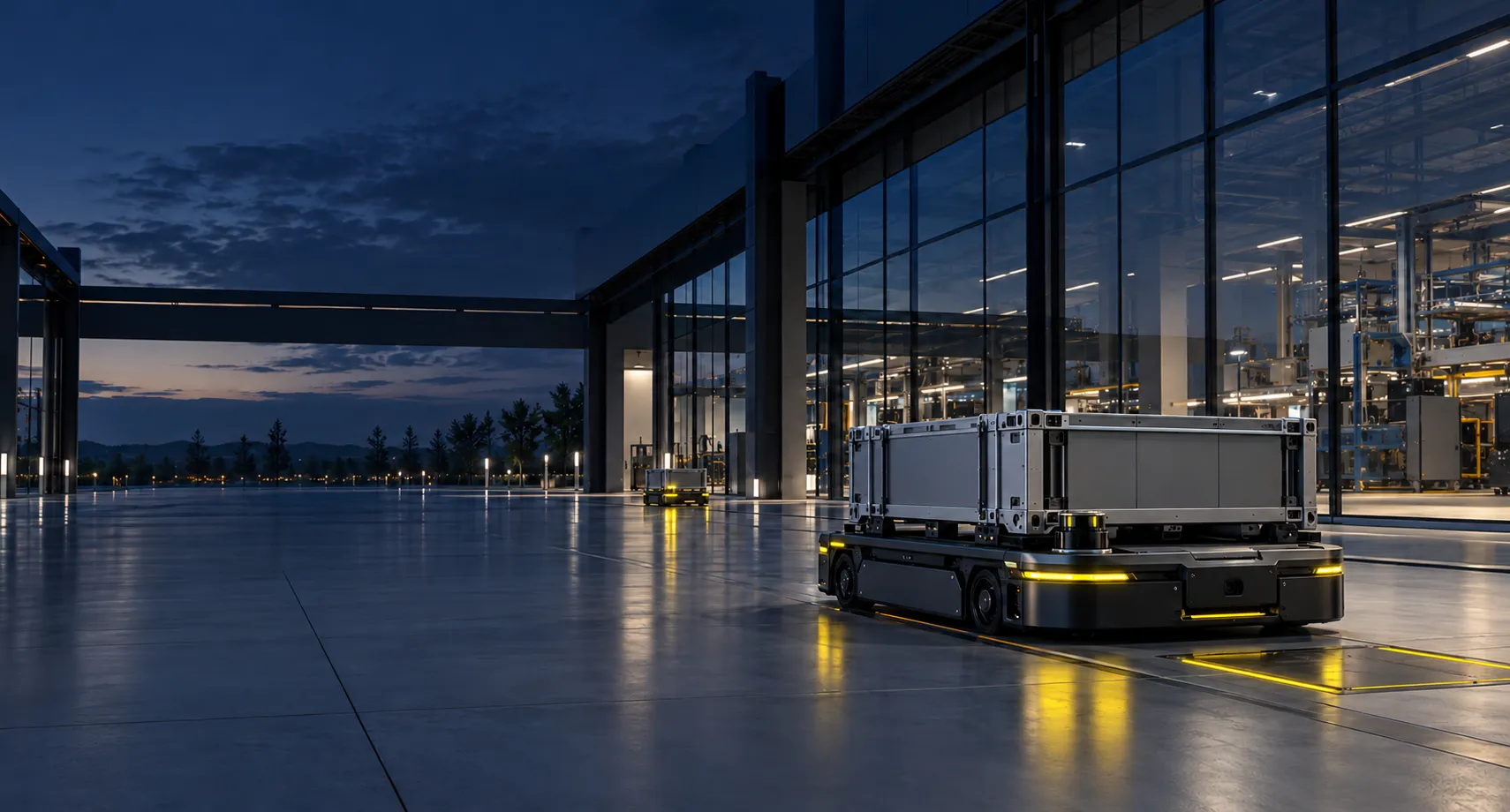

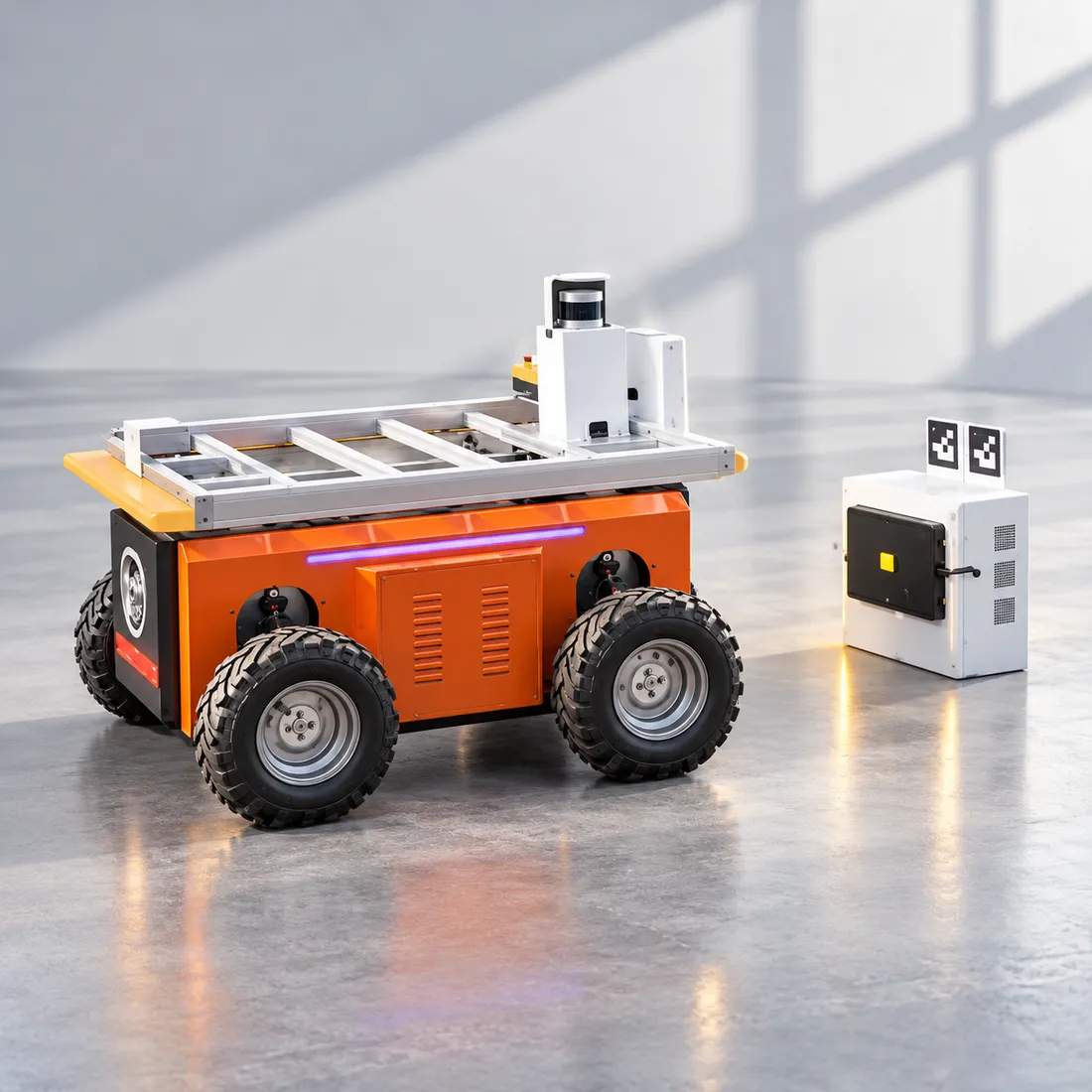

AMR in
Smart Logistics
Enabling continuous operation in high-throughput warehouse environments.

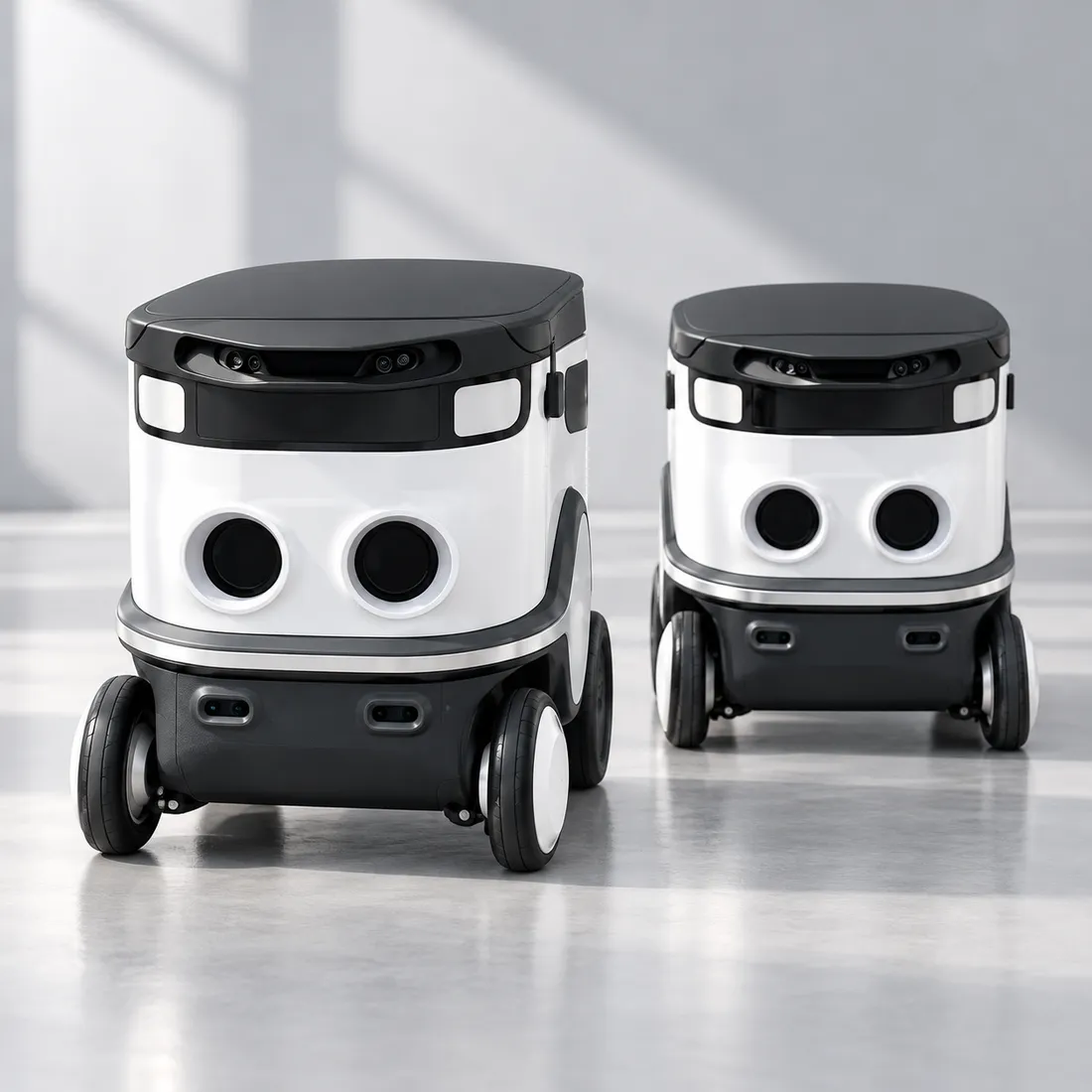

Service Robot in
Commercial Facilities
Supporting autonomous cleaning robots for cleaner, smarter spaces.

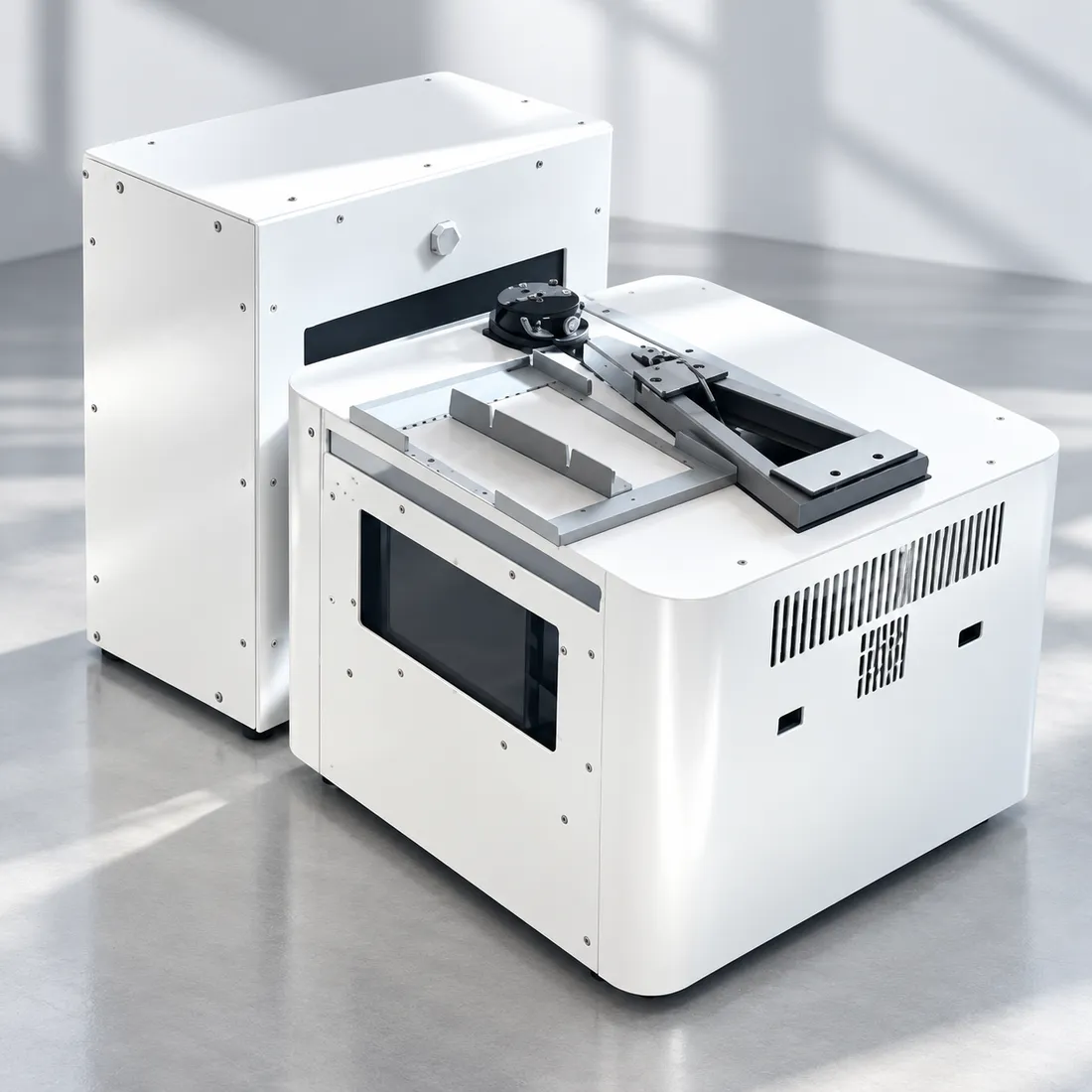

Outdoor
Delivery Platform
Reliable wireless charging for next-generation outdoor mobility.

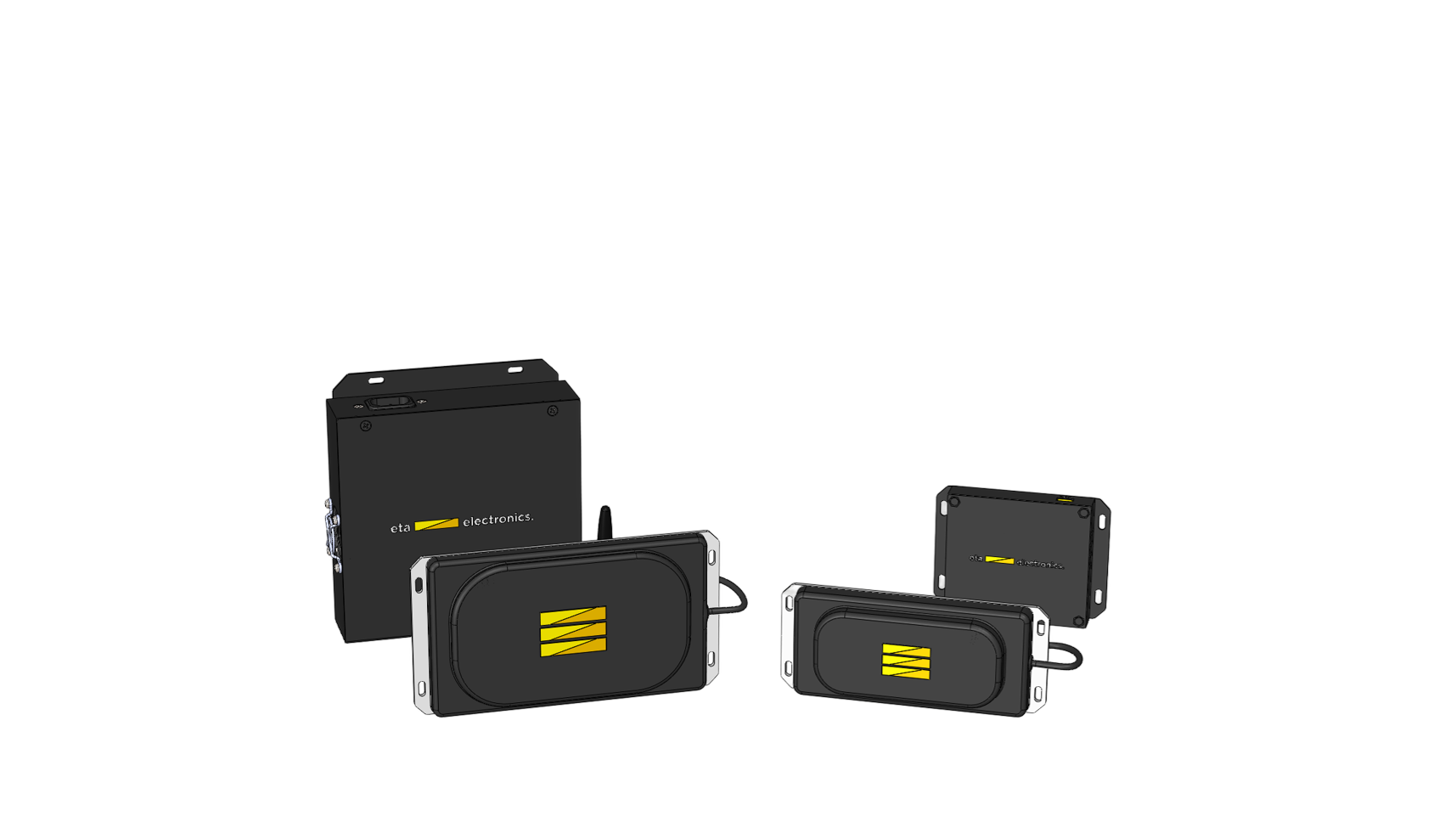

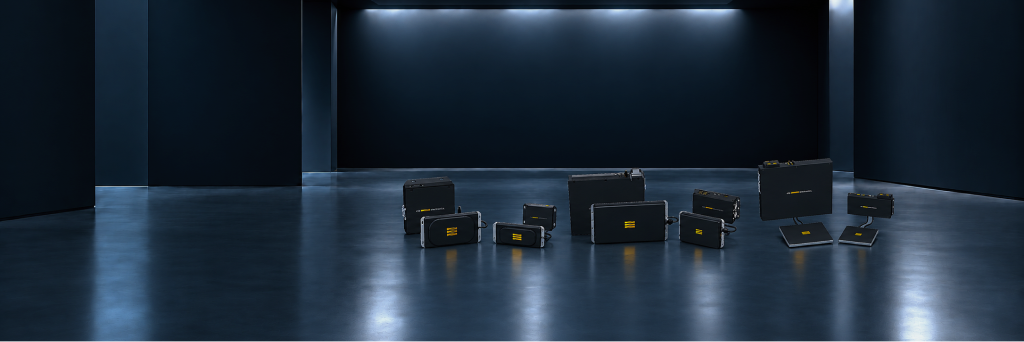

ELYX Products Lineup
Examples of how ELYX is used in real-world charging environments
Max. Charging Power
- 15 – 29 V
- 145 W
- 25 – 42 V
- 168 W
- 38 – 53.6 V
- 160.8 W
Max. Charging Current
- 15 – 29 V
- 5 A
- 25 – 42 V
- 4 A
- 38 – 53.6 V
- 3 A
Operating Frequency
79-90 kHz
Max. Charging Efficiency
Up to 88% (DC-to-Battery)
Max. Charging Air Gap
40 mm
Misalignment Tolerance
X-axis: ±40 mm / Y-axis: ±20 mm
Need help finding the
right charging solution?
Tell us about your robot, battery, and charging requirements.
